Oil Gas Industry 400# 500# Diamond Grinding Wheel

Xinzheng Dia Abrasives Co.,Ltd

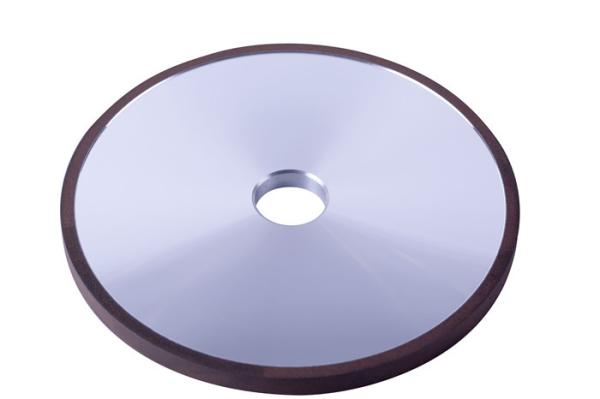

Oil Gas Industry 400# 500# Diamond Grinding Wheel

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000 pcs per month capacity

Delivery Time : 10-14 days delivery time

Packaging Details : Box

Place of Origin : China

Certification : High QC standard, 100% inspection

Common Shape : 1A1,11A2, 6A2

Feature : High grinding efficiency

Bond : Resin, Vitrified

Key word : Diamond Wheels

Application : Mining Drill, Oil&Gas Drill Industry

Grit size : rough grinding (400#, 500#, 600#), medium grinding (800# and 1000#), finish grinding (1500#, 2000#), super finish grinding (3000#, 4000#, 6000#)

Contact Now

Resin & Vitrified Bond Grinding Wheel For Oil And Gas Drill Industry

Diamond wheels are widely used in Oil&Gas industry, they can be used for grinding PCD bit teeth and many other parts.

Features:

High grinding efficiency
Small grinding force
High wear resistance
High accuracy workpiece
Low grinding temperature

Vitrified bond

Good self-sharpening with pores and little damage to the spindle of the grinding machine

The grinding wheel is sharp and the grinding efficiency is high.

When grinding, the cutter is not back-off and the size of PDC is a good consistency

The centerless vitrified diamond grinding wheel is suitable for finish grinding polycrystalline diamond compacts(PDC).

Specifications:
Common Shape Wheel Size Grit Size Classic Specification
1A1,11A2, 6A2 Vitrified bond:
1A1
OD:200, 250
T:50
H:75, 127,203, 228.6, 305

Vitrified bond centerless:
1A1, 6A1, 9A1
OD:200, 250, 300, 350, 400, 450, 500
T:50,100,125, 150,
H:75, 127, 203, 305


Diamond Width: 3mm, 5mm, 10mm, 15mm, 20mm
rough grinding (400#, 500#, 600#), medium grinding (800# and 1000#),
finish grinding (1500#, 2000#), super finish grinding (3000#, 4000#, 6000#)
1A1 wheels are used for cylindrical grinding in manufacturing and dressing PDC bits
1A1 457.2D*50.8T*304.8H*10X
1A1 600D*76T*304.8H*10X
1A1 609.6D*76T*304.8H*16X
1A1 750D*76T*304.8H*10X
1A1 900D*76T*304.8H*10X
Resin bond centerless grinding wheel is applied in the finishing process of PDC cutter

6A2 150D*40T*32.4H*5W(10,15,20)*10X
6A2 125D*40T*32.4H*5W(10,15,20)*10X
6A2 100D*40T*32.4H*5W(10,15,20)*10X

Application
Industry Workpiece&Material Machine Bond Working Data
Mining Drill, Oil&Gas Drill PDC, Polycrystall diamond compact Ewag, Anca, COBORN, Farman and others PCD grinding machine. Resin
Vitrified
