High Grinding Efficiency PCD Blanks Stones For Bruting Natural Diamond

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000 pcs per month capacity

Delivery Time : 10-14 days delivery time

Packaging Details : Box

Place of Origin : China

Certification : High QC standard, 100% inspection

Advantage : high thermal stability

Material : Diamond

Product Name : PCD Blanks Stones

Feature : high grinding efficiency

sizes : Full range

Application : for Bruting diamond

Contact Now

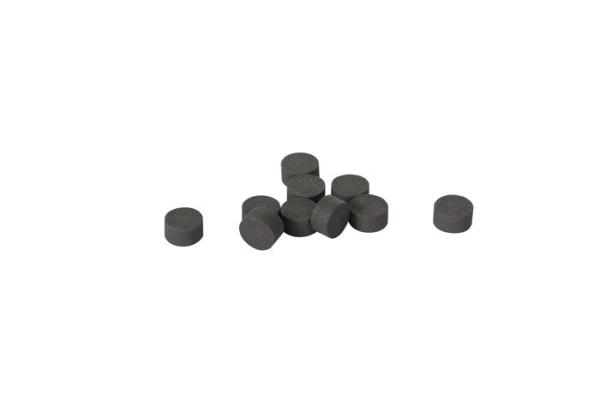

PCD Stones For Natural Diamond

PCD is Synthetic Diamond blank, produced by diamond sintered with bond under high temperature and high pressure.

Features:

Low cost
High productivity
Soft and Hard bond available
Full range of sizes

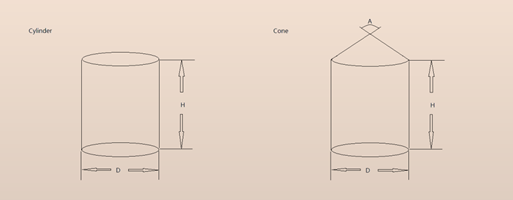

Specification:

D: diameter.
H: height.
A: the point angle. includes 90°, 120° and 180°.
All the units of dimension is mm.Available Specification
Part #	Spec.(DHA) MM
0308S	Φ38120°
0803F	Φ38180°
0410S	Φ410120°
0410F	Φ410180°
0510S	Φ510120°
0510F	Φ510180°
0610S	Φ610120°
0610F	Φ610180°
0801S	Φ81180°
081.5F	Φ81.5180°
0802F	Φ82180°
101.5F	Φ101.5180°
1002F	Φ102180

High Grinding Efficiency PCD Blanks Stones For Bruting Natural Diamond

Application:

PCD shows very high wearability and high thermal stability in Bruting natural diamond.
Compared to natural diamond used for Bruting diamond, our PCD not only has much
high grinding efficiency, but the price is much lower. Therefore, it is the first choice for
demand processing natural diamond nowadays.
